Made a little progress.....
Goto page 1, 2  Next

Post new topic   Reply to topic    Flightdeck Solutions Forum Index -> FDS Customer Project Updates
View previous topic :: View next topic
Author Message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Sat Jan 05, 2013 5:46 pm    Post subject: Made a little progress..... Reply with quote

Thanks to XorionFE moving up to new gear, I got a chance to buy his old stuff. Scott was gracious enough to deliver it and help me get some of it together today. Also picked up real forward and aft overhead frames.

I'm motivated to start building again!

This is where I was....

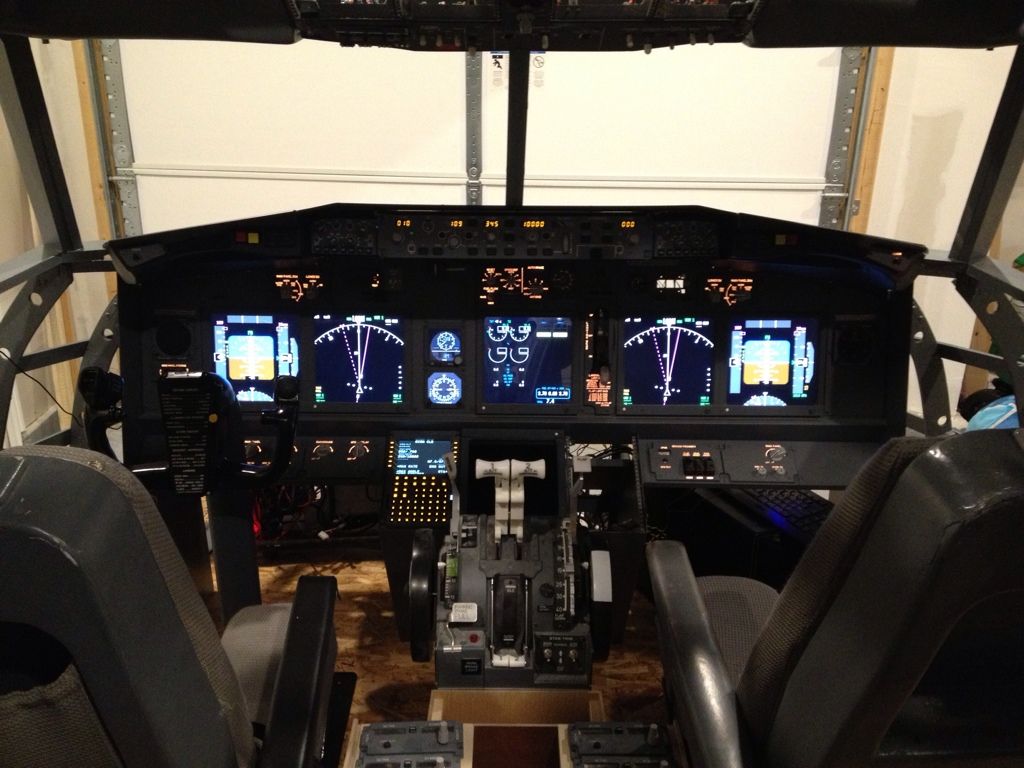

And now some progress







John
_________________
John
Back to top
View user's profile Send private message
mauriceb



Joined: 22 Aug 2005
Posts: 1051
Location: Gravenhurst, Ontario - Canada

PostPosted: Sat Jan 05, 2013 6:00 pm    Post subject: Reply with quote

I like the coat hanger and the little cutie is most definitely your daughter Very Happy

Maurice
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Mon Jan 07, 2013 9:39 am    Post subject: Reply with quote

mauriceb wrote:
I like the coat hanger and the little cutie is most definitely your daughter Very Happy

Maurice


Isn't that what those are used for? Wink

I need to get my visuals going!


_________________
John
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Mon Jan 14, 2013 8:32 am    Post subject: Reply with quote

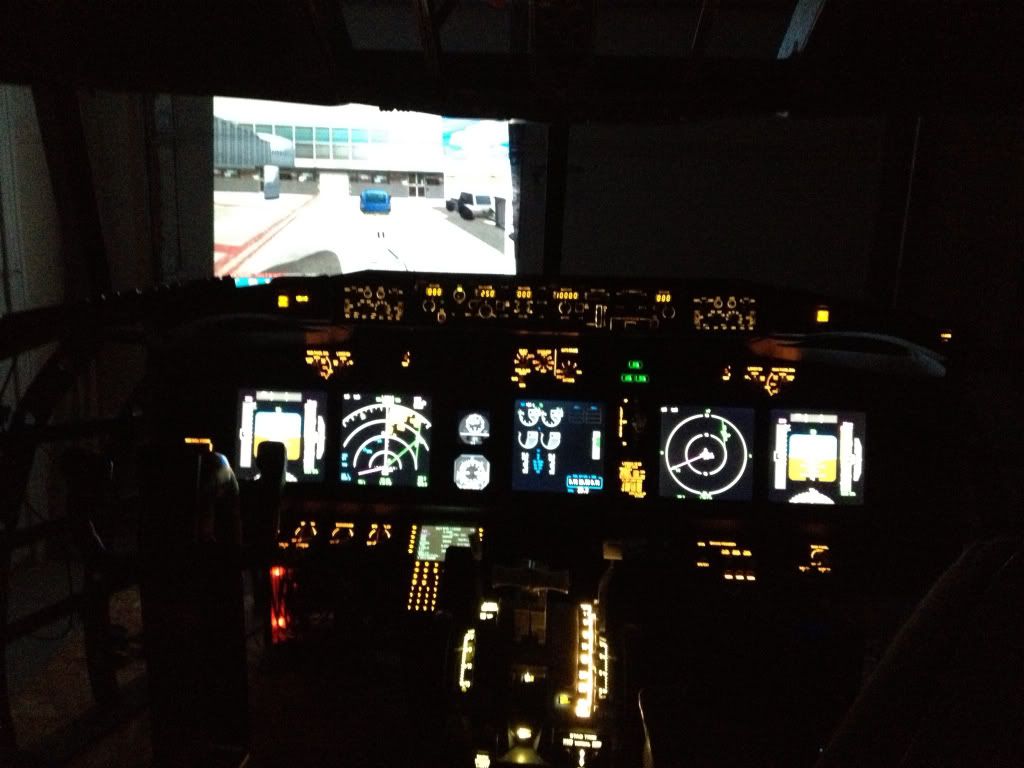

Made a little more progress. Temp flying off a LED Pico PJ. Ordered three 60" plasma's for my visuals, need to get the overhead parts next


_________________
John
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Wed Jan 16, 2013 5:09 pm    Post subject: Reply with quote

One monitor




_________________
John
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Tue Jan 22, 2013 9:37 am    Post subject: Reply with quote

The other two Plasma's arrive tomorrow, and the mounts for them are already made, so I can't wait to see the visuals with the three screens

That being said, My P3D machine is showing its age. Its an i7-2600 and I need to bump the speeds back up after refreshing the box with a new load of Windows. I'm getting 14-20FPS on the ground at KDFW FSDreamteam airport now and that's with no AA, 25% My Traffic, UTX North America and without REX. I was running dual GTX-275's in that PC, so last night I ordered a GTX680 and it should be here by Friday. So that will give me a chance to do a little before and after comparision.
_________________
John
Back to top
View user's profile Send private message
Tomlin



Joined: 23 Aug 2004
Posts: 1008

PostPosted: Tue Jan 22, 2013 12:01 pm    Post subject: Reply with quote

jskibo wrote:
The other two Plasma's arrive tomorrow, and the mounts for them are already made, so I can't wait to see the visuals with the three screens

That being said, My P3D machine is showing its age. Its an i7-2600 and I need to bump the speeds back up after refreshing the box with a new load of Windows. I'm getting 14-20FPS on the ground at KDFW FSDreamteam airport now and that's with no AA, 25% My Traffic, UTX North America and without REX. I was running dual GTX-275's in that PC, so last night I ordered a GTX680 and it should be here by Friday. So that will give me a chance to do a little before and after comparision.


Very much looking forward to both the updated GPUs and the final two displays. Keep us posted.
_________________
Eric Tomlin
Learjet 45

Waycross, Ga (KAYS)
www.Hangar45.net
Back to top
View user's profile Send private message Visit poster's website
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Wed Jan 23, 2013 5:05 pm    Post subject: Reply with quote

More displays arrived. Still dialing them in, but going to try a night flight.....











Really adds to the immersion.
_________________
John
Back to top
View user's profile Send private message
tugo31



Joined: 30 Nov 2007
Posts: 112
Location: Mexico

PostPosted: Wed Jan 23, 2013 6:47 pm    Post subject: Reply with quote

Nice setup, can you please post a photo of the Plasmas base? how did you place them?

Regards
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Wed Jan 23, 2013 7:20 pm    Post subject: Reply with quote

tugo31 wrote:
Nice setup, can you please post a photo of the Plasmas base? how did you place them?

Regards


XorionFE's design.....$200 in Home Depot parts for all three genius!




_________________
John
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Wed Jan 23, 2013 11:05 pm    Post subject: Reply with quote

Approaching KSTL





_________________
John
Back to top
View user's profile Send private message
aerocet



Joined: 11 Feb 2013
Posts: 2
Location: Montreal

PostPosted: Mon Feb 11, 2013 12:50 pm    Post subject: Reply with quote

Hi
You did a superb job.
Would you be kind enough to share the drawings and specifictions of your tv support?
Thanks in advance.
Claude
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Wed Feb 20, 2013 12:19 pm    Post subject: Reply with quote

aerocet wrote:
Hi
You did a superb job.
Would you be kind enough to share the drawings and specifictions of your tv support?
Thanks in advance.
Claude


Well its XorionFE's design, so giving him full credit.

Home Depot:

1 1/2" galvanized pipe (Scott used 2' Black) comes in 10 ft length threaded, have them cut in half.

(2) 1 1/2" U-bolts per stand

1 1/2" threaded pipe flange

18" round 1' thick table top (unfinished)

I added a 24" square 1/2 plywood under it for stability

Four 5/16 bolts, washers, lock washers and nuts to bolt the flange to table top wood.

Upper frame is 3/4 plywood, bought one sheet and ripped in 4 equal 24 x 48 pieces.

Lay flange on wood, slightly offset from center since TV will hang in front of it. Mark holes and drill. I countersunk the back for the boltheads prior to drilling.

Mount flange to table top, secure with bolts, nuts and washers.

Mount 24 x 24 plywood to table top

thread pipe into flange and tighten as much as you can

Mark, drill and install ubolts to 24 x 48 mounting plywood (careful to center it when marking).

Choose TV mount of your liking, I used thin mounts from Monoprice.com

Measure your TV height before installing mount (can be adjusted using ubolts later, but best to get close first).

Install mount on plywood, hang TV.

My TV's were big enough that I didn't block the HDMI ports with the 48" wide piece, but you should ivestigate first and potentially cut access if needed.

It was ~$200 for 3 mounts and that leaves leftover for almost anothe mount (spare pipe and backer wood).

On another note, just got a Big box of goodies from FDS today, my overhead parts and MIP 2.0 mods!!!! Going to be a fun month, thanks Peter and Steve!
_________________
John
Back to top
View user's profile Send private message
jskibo



Joined: 15 Jul 2010
Posts: 77
Location: Florence, KY

PostPosted: Mon Feb 25, 2013 9:56 pm    Post subject: Reply with quote

Didn't get as far as I would have liked. There's a lot of switches and annunciators to wire....




_________________
John
Back to top
View user's profile Send private message
tugo31



Joined: 30 Nov 2007
Posts: 112
Location: Mexico

PostPosted: Mon Feb 25, 2013 10:59 pm    Post subject: Reply with quote

Hey John, where did you get the landing lights switches??
Back to top
View user's profile Send private message
